Made in Sweden, Zipwake is the world's first Dynamic Trim Control System which incorporates a state of the art series of durable, fast acting interceptors, eliminating the well known trim problems of planing and semi planing hulls. The S Series suits boats between 17 to 50 feet. The system is fully automatic and significantly enhances performance, fuel economy, comfort and safety when accelerating and cornering. Thye have a built in GPS, 3D Gyro and 3D Accelerometer.

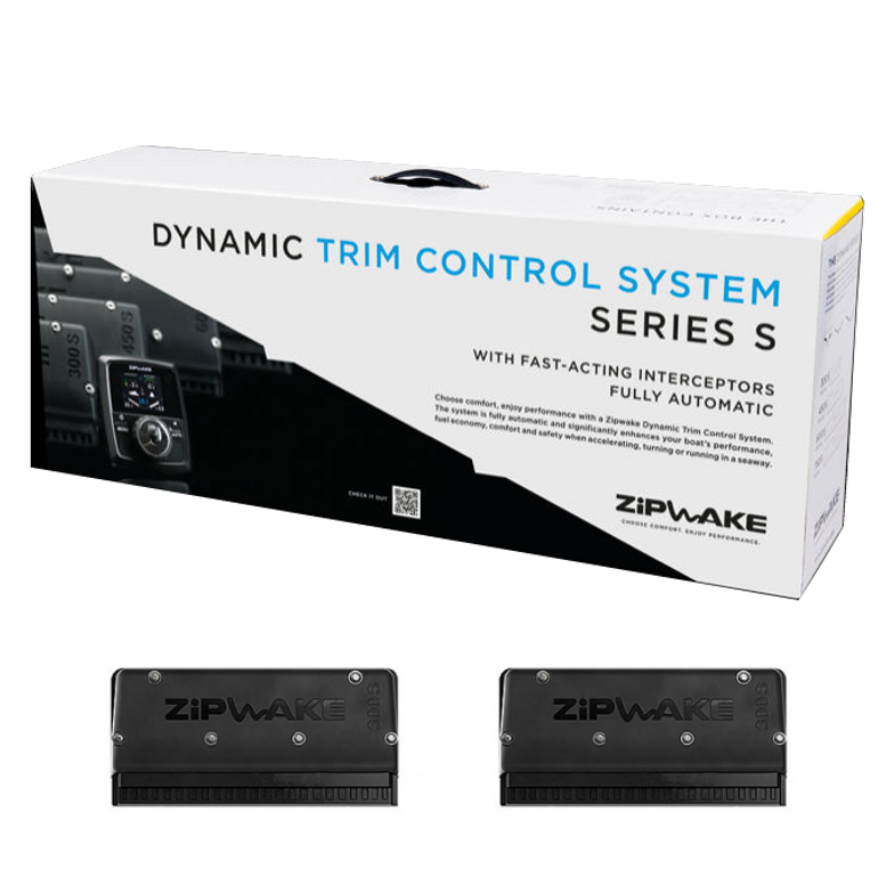

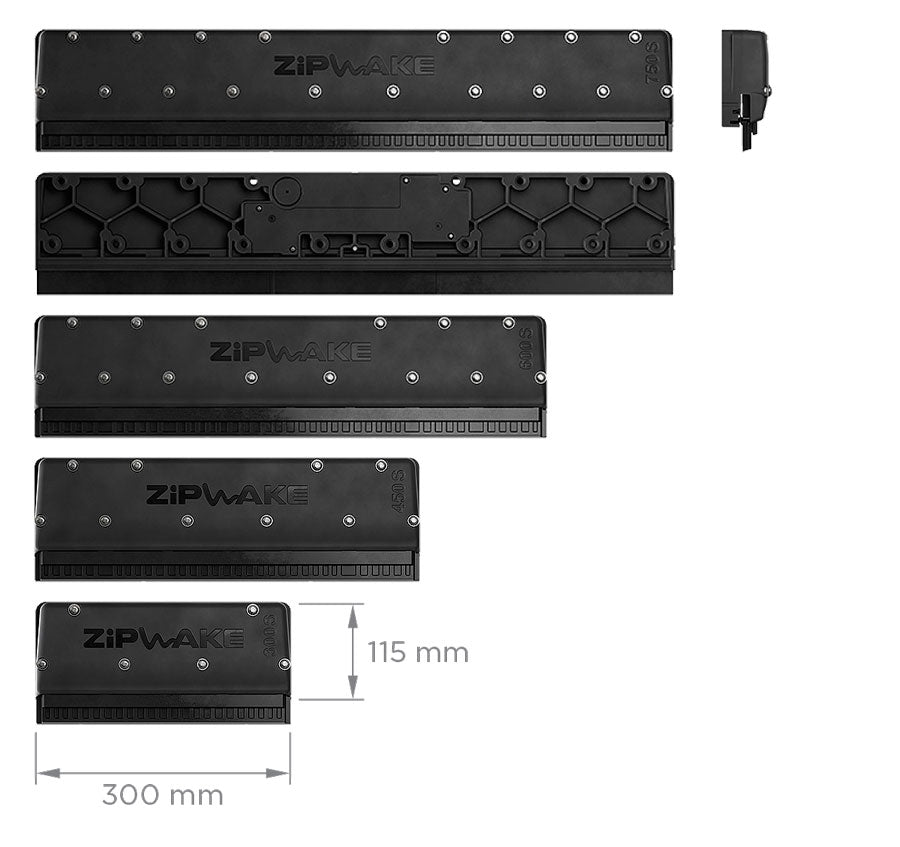

A kit box includes all the parts needed to install a dynamic trim control system with one pair of fast acting interceptors. There are 4 different kit boxes, one for each length of interceptor model. The 4 different kits are the different interceptor lengths of 300mm, 450mm, 600mm and 750mm. The two most common kits by far are the 300mm and the 450mm and are the ones used on all our trailerboats including the large Yellowfin plate boats and the CruiseCrafts.

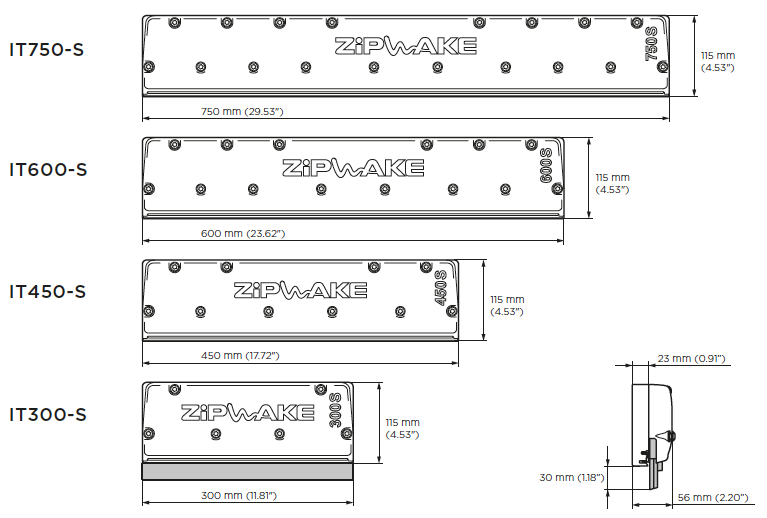

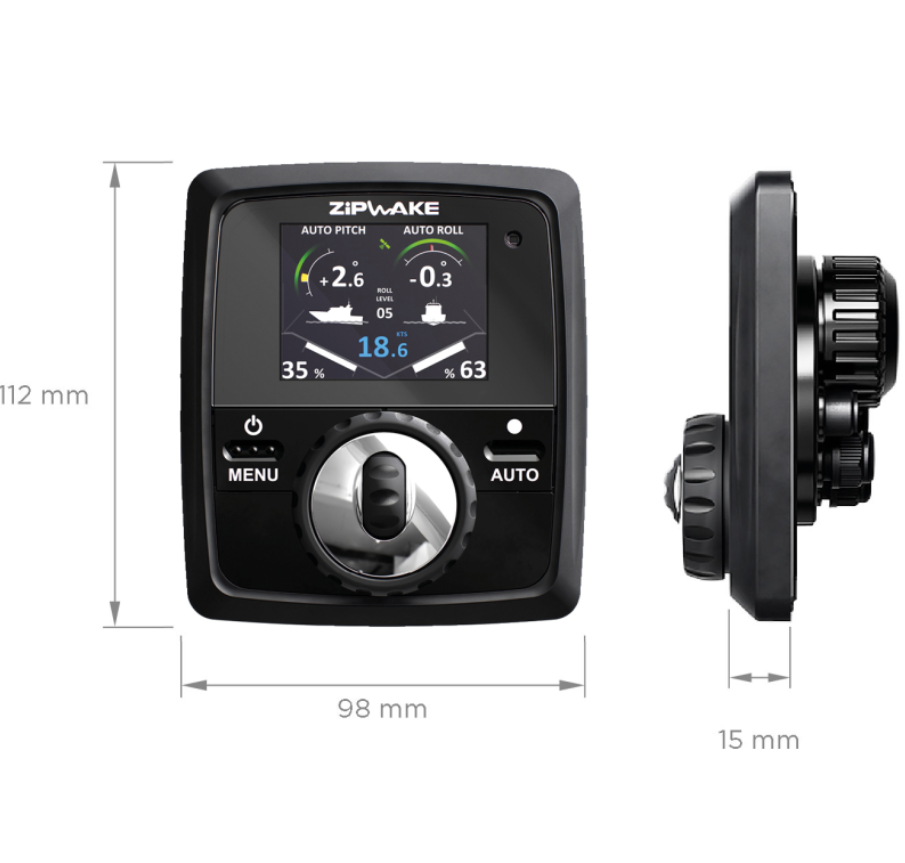

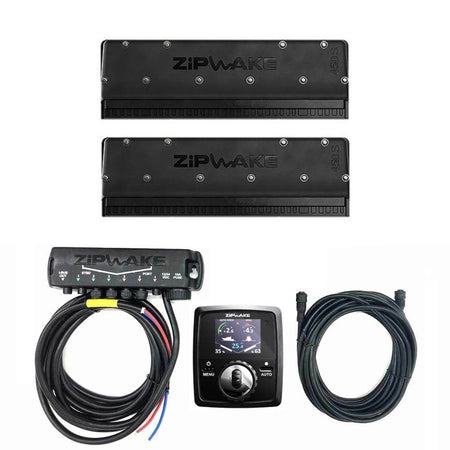

Each kit contains a pair on interceptors with 3mtrs cables on each, the control panel with a 7mtr cable and the distribution unit with a 4 mtr power cable. Dimensions of the control panel and the interceptors are in the pictures.

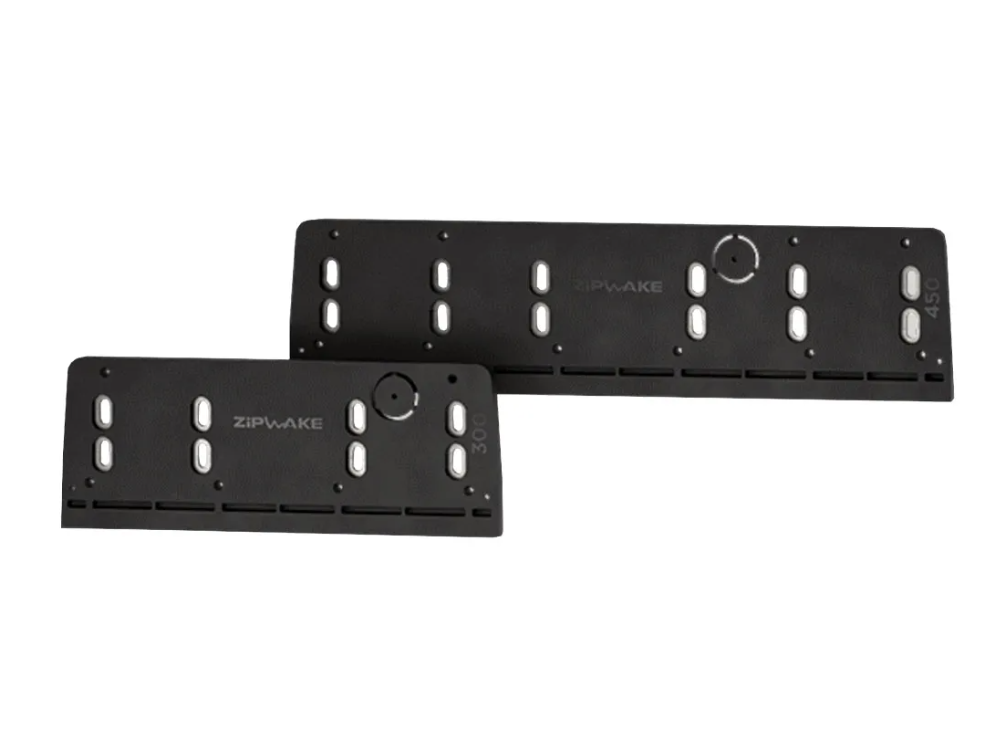

The adaptor plate kits are available in the 300mm and 450mm widths. They allow boaters to easily upgrade to Zipwake from another similarly sized interceptor system. The plates streamline hull preparations to upgrade to Zipwake Series S, fitting perfectly to the existing transom screw hole pattern and sealing previous holes for thru hull fittings. An Adaptor kit includes two adaptor plates, 2 O-rings, screws and an installation guide.
