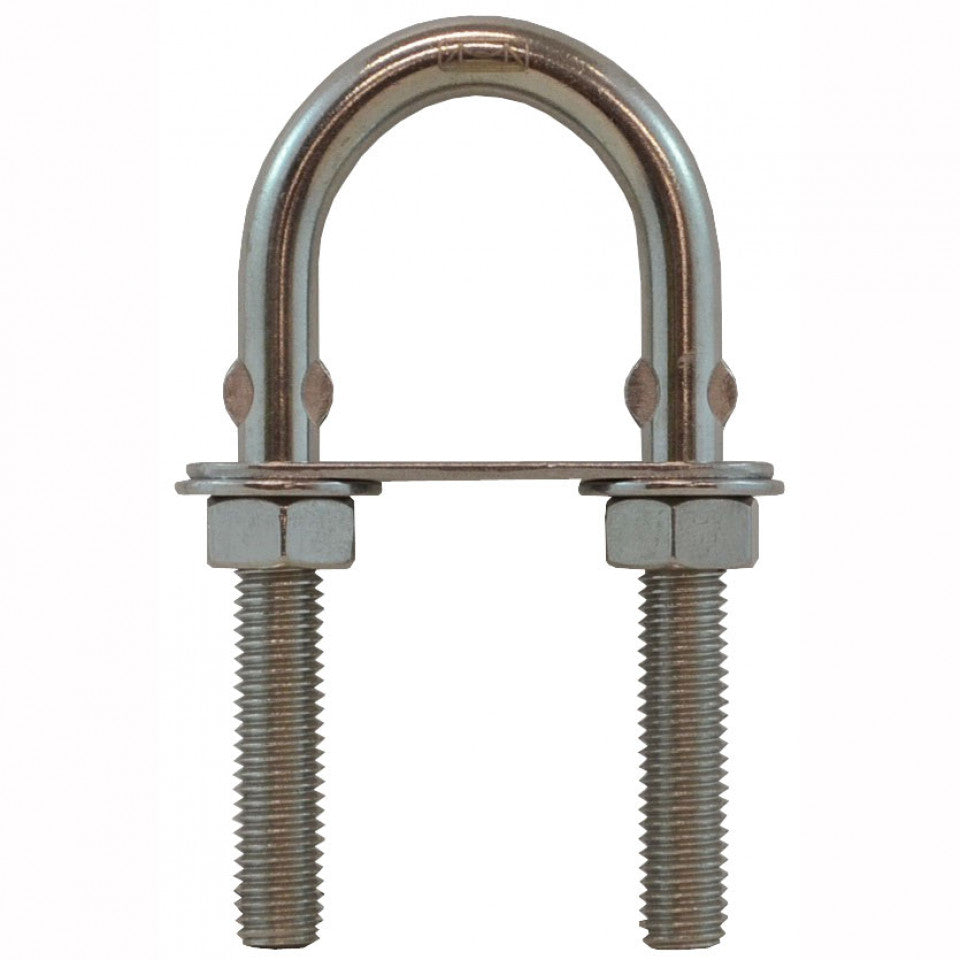

Stainless Steel Transom U Bolts - 5 Sizes.
$6.00
304 grade stainless U bolts with crimped shaft for all transom mount applications. Comes with cross plate, 2 washers and 2 nuts. They are available in 5 sizes: Click on Product Name above to see full details of fitting and sizing to suit your boat.

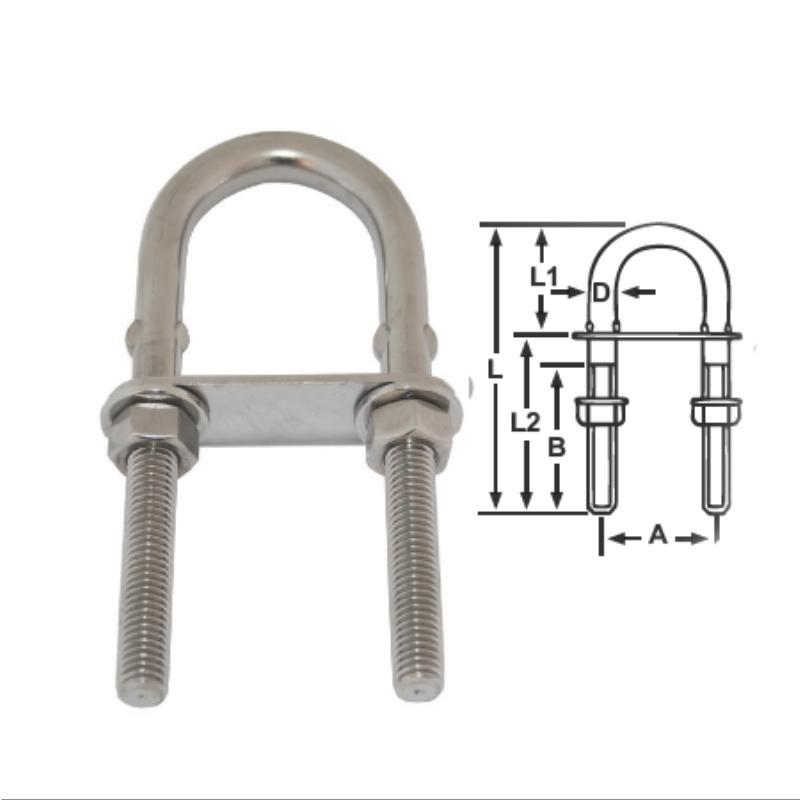

| D | L | L1 | L2 | A | B |
| 6mm | 80 | 30 | 45 | 35 | 40 |
| 8mm | 80 | 35 | 45 | 35 | 40 |
| 8mm | 100 | 40 | 60 | 35 | 48 |
| 10mm | 130 | 55 | 75 | 53 | 55 |
| 12mm | 150 | 75 | 75 | 60 | 60 |
You might also like
X
Stainless Steel Transducer Spray Deflector - Tabs Up - 3 sizes
$40.00
This transom mount stainless steel transducer spray deflector can solve a lot of your problems. It allows you to run the transducer deeper in the water to get a better reading but you don't have to be worried about the resulting salt spray getting sucked into your engine. It is 150mm wide at its widest point and is either 135mm, 200mm or 250mm long.
Brand:
Hunts Marine
SKU: BM90014
X

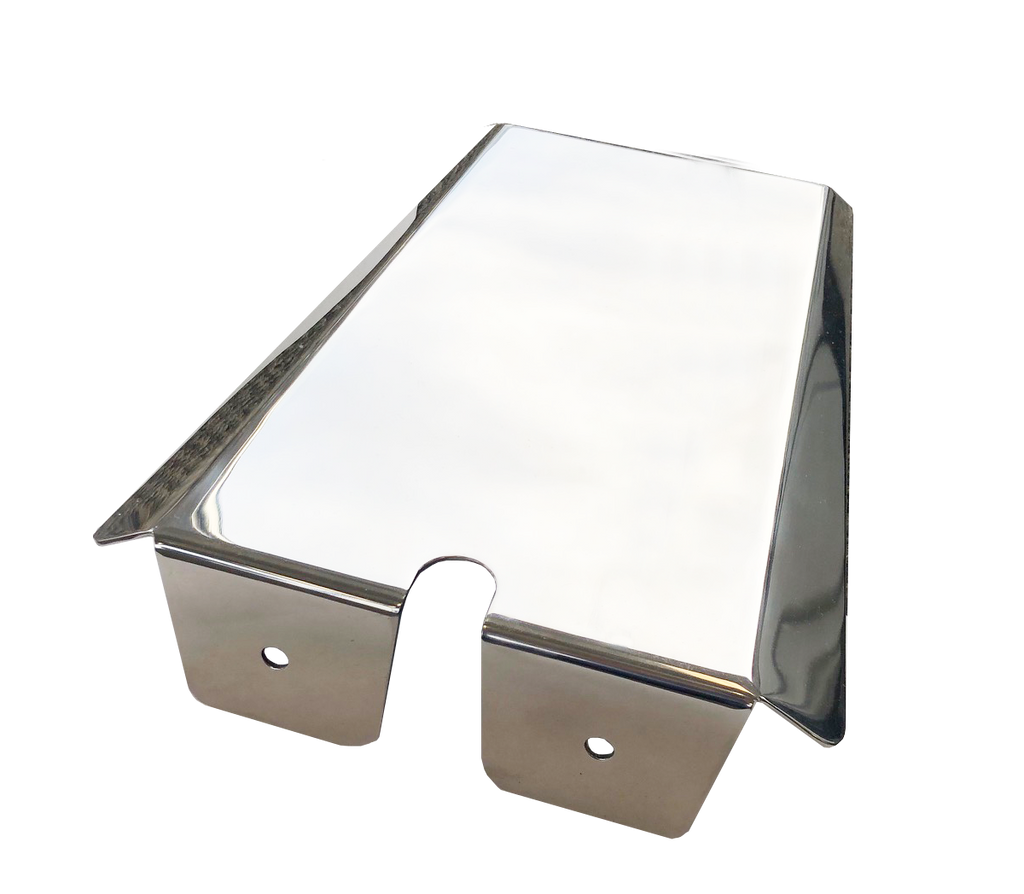

Stainless Steel Transducer Spray Deflector - Tabs Down - 3 sizes
