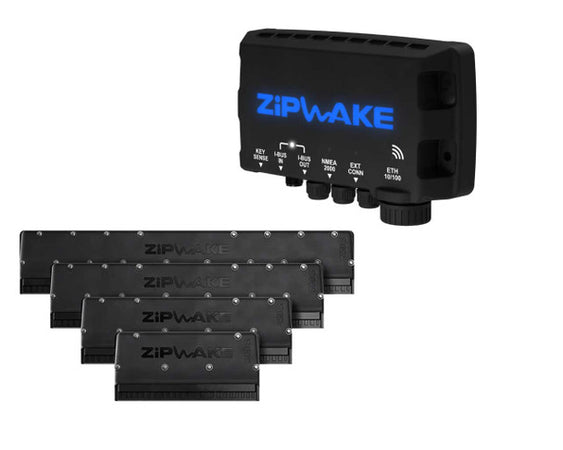

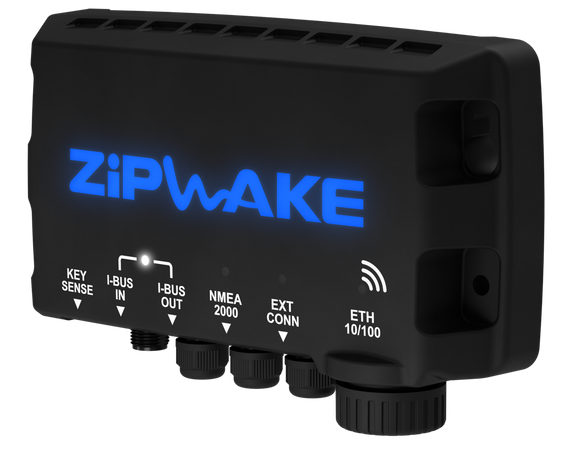

Made in Sweden, Zipwake is the world's first Dynamic Trim Control System which incorporates a state of the art series of durable, fast acting interceptors, eliminating the well known trim problems of planing and semi planing hulls. The S Series suits boats between 17 to 50 feet. The system is fully automatic and significantly enhances performance, fuel economy, comfort and safety when accelerating and cornering. Thye have a built in GPS, 3D Gyro and 3D Accelerometer.

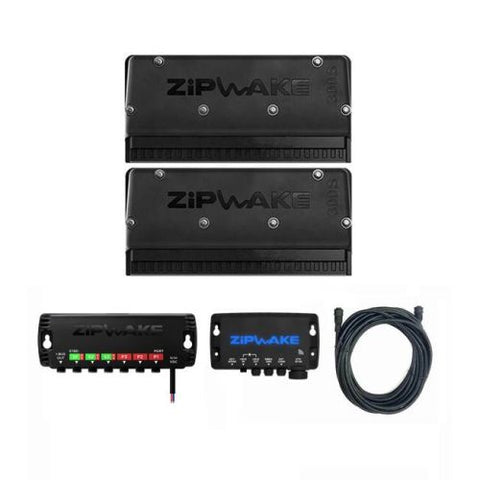

A kit box includes all the parts needed to install a dynamic trim control system with one pair of fast acting interceptors. There are 4 different kit boxes, one for each length of interceptor model. The 4 different kits are the different interceptor lengths of 300mm, 450mm, 600mm and 750mm. The two most common kits by far are the 300mm and the 450mm and are the ones used on all our trailerboats including the large Yellowfin plate boats and the CruiseCrafts.

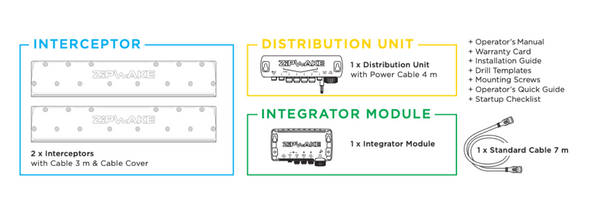

Each kit contains a pair on interceptors with 3mtrs cables on each, the control panel with a 7mtr cable and the distribution unit with a 4 mtr power cable. Dimensions of the control panel and the interceptors are in the pictures.

This is the twin battery switch above with a Voltage Sensitive Relay (VSR) all pre-wired in. With the selector switch in position 1, it becomes the sensing battery for the VSR. When the engine is first started the relay is open and remains open until the selected battery reaches a pre-set 13.4 volt. The relay closes at the rated voltage providing charge to both batteries. When the selected battery voltage drops below 12.8 volt, the DVSR disengages, separating the batteries and ensuring that battery 1 is not discharged by house loads. When the selector switch is in position 2, this becomes the sensing battery and the reciprocal occurs. When the selector switch is in the both position the DVSR is inactive and the charge and load is distributed evenly between the batteries. With this system the loads are run off the same battery as the engine starting battery. Dimensions are 69mm X 69mm X 138mm.

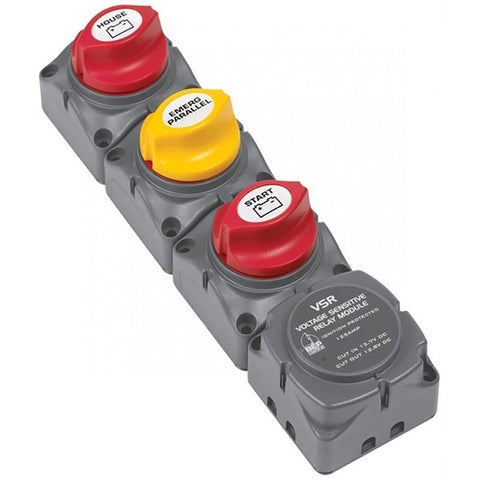

This is exactly the same as the square unit above except its available in either a vertical row or a horizontal row. The horizontal row is part number 114070 and the vertical is part number 114074. Dimensions are 69mm X 276mm wide X 69mm.

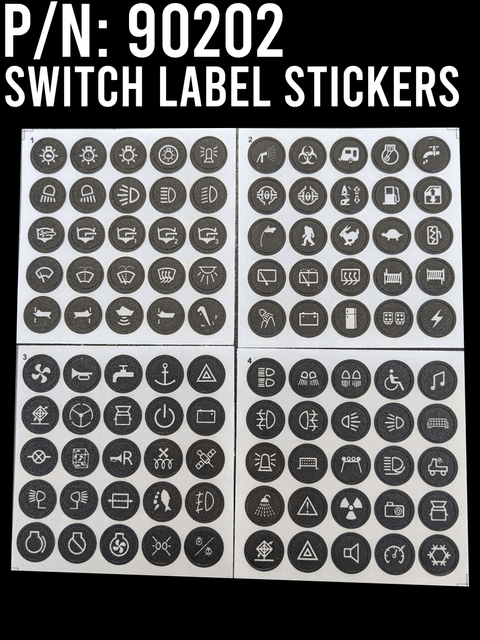

Transparent stickers to suit switches and switch panels above.

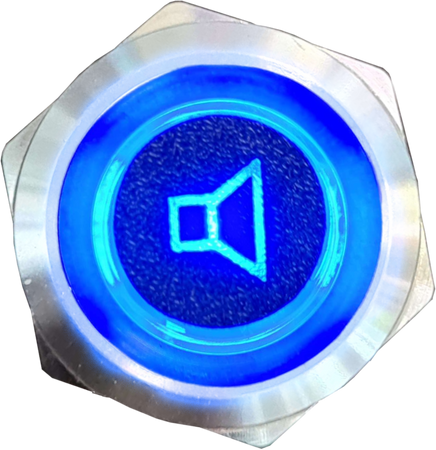

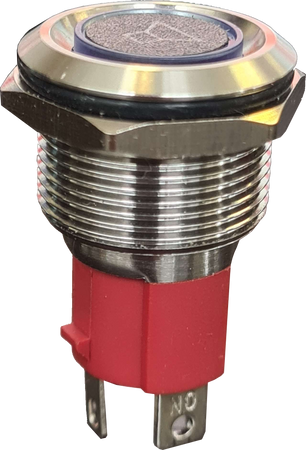

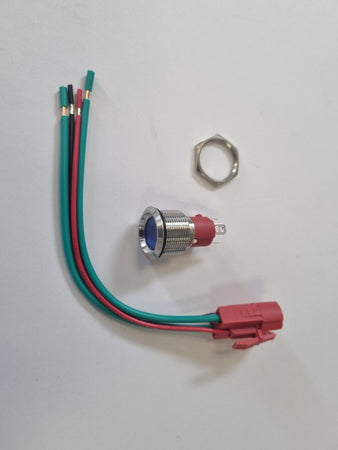

15 Amp push button switch to suit switch panels above. They don't have to be mounted in the panel and as they are IP67 waterproof they are great to just fit on their own out in the open somewhere. Note: Stickers are supplied separately below.

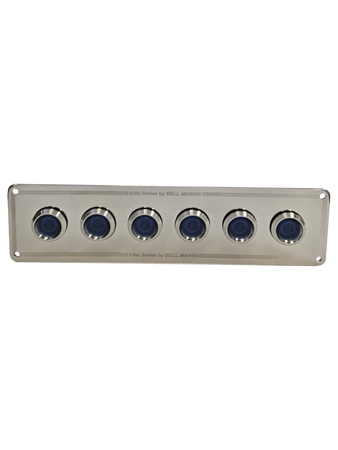

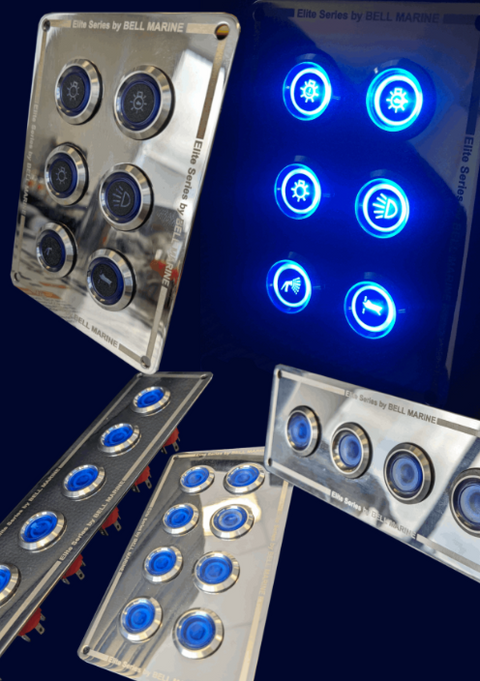

6 gang INLINE Stainless Steel switch panel with 15A backlit switches. The 15 Amp Backlit Switches are all pre-wired and are designed to make your life easier and more stylish. Boasting a bright and clear backlit display when pushed and turned on you just fit the appropriate decal for what its being used for. Switch label stickers are supplied as per photo. Face plate dimensions are 52mm by 203mm.

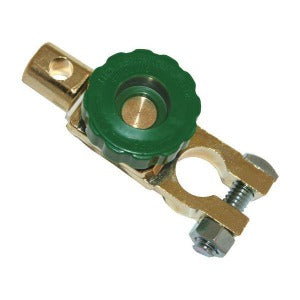

If you want a quick solution to a master battery switch then this is not a bad option. It is a brass battery terminal with a quick release knob. Simply turn the knob to disconnect the battery power and separate the terminal.

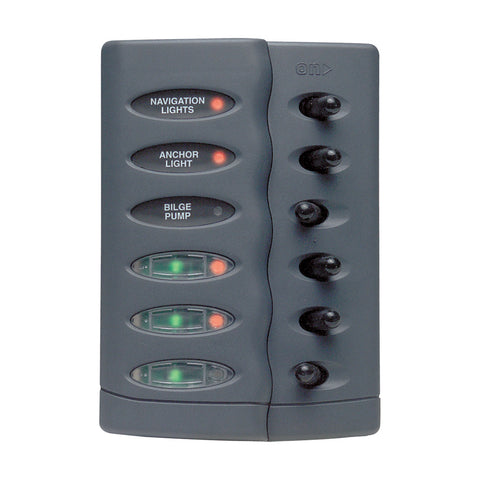

Same top quality BEP Contour switch panel as above except it has 6 built in Positive Temperature Coefficient (PTC) resettable fuses. PTC fuses are solid state 9 amp resettable fuses where all you do is turn the particular switch off for 10 secs to reset. Comes standard with a 29 piece label set. Suitable for 12volt only. Height = 158mm, Width = 110mm with a 75mm intrusion.

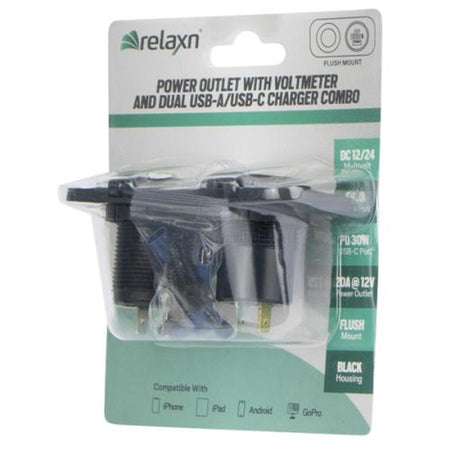

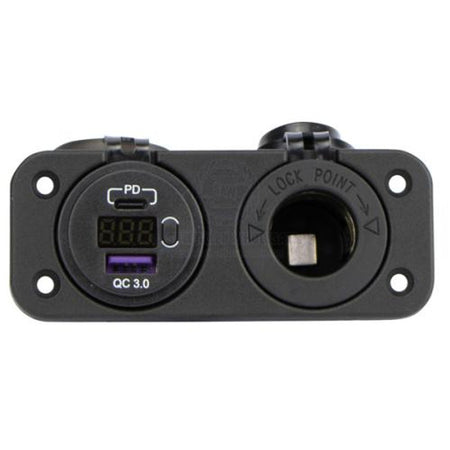

This 20mm plug suits all standard 12 and 24 volt sockets. It is ideal for powering multiple electronic devices with dual USB plugs from a boat or vehicle’s accessory socket. Features easy to read battery Volt meter which switches to Amp draw when a device is plugged in to one of USB sockets

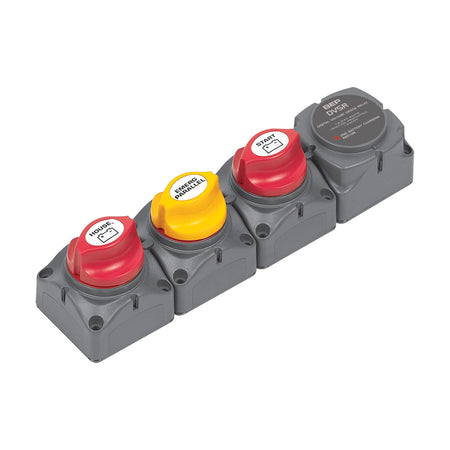

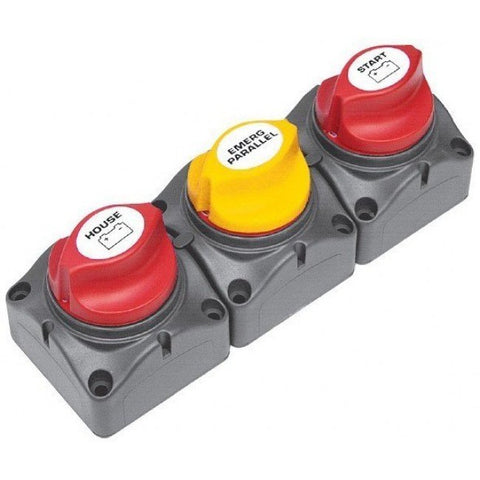

BEP Battery Distribution Cluster is a pre assembled module with solid links and application labels, based on the 701 Mini Battery Master Switch. BEP Battery Distribution Cluster provides for isolation of start battery and house batteries independently with the ability to emergency parallel supply from both. Ignition protected. Dimensions are 200mm high X 69mm wide X 75mm deep.

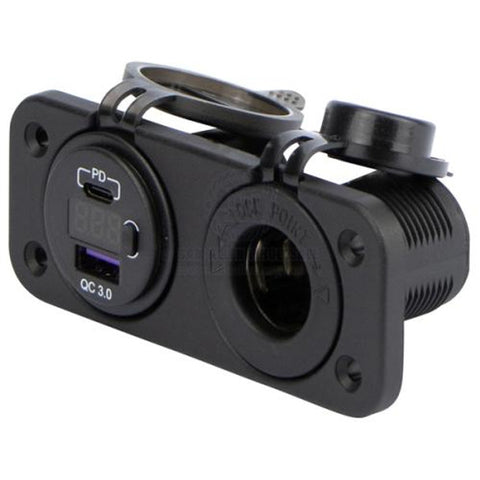

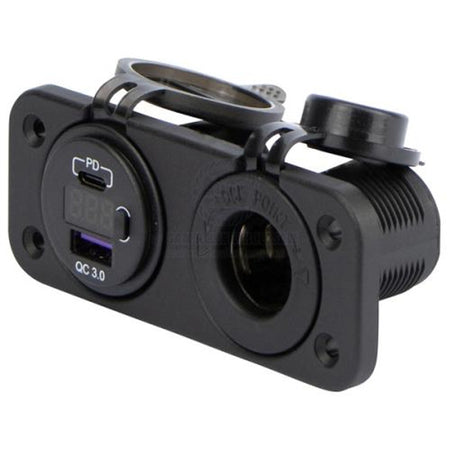

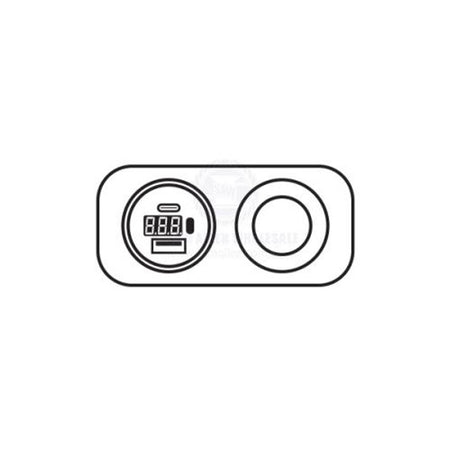

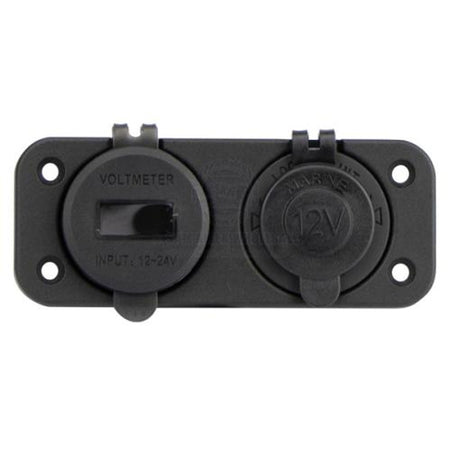

A common plug used in a lot of our boats. It has a standard 20mm socket on one side and a digital volt meter on the other. Suitable for 12 and 24volt applications. Dimensions of panel are 105mm long by 43mm high.

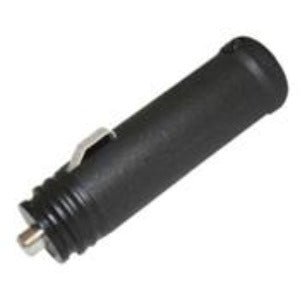

This 20mm plug suits all standard 12 and 24 volt sockets. Rated to 20 amps.

This is a popular medium duty battery switch designed for twin battery installations in smaller trailer boats. Rated up to 200 amps.

12volt plastic flush mounted socket with splashproof rubber lid. Requires a 27mm hole for mounting and suits all standard 20mm accessory plugs. Perfect for charging phones, spotlights and 12v air pumps for blowing up tubes and biscuits.

This 2 pin flush mounted plug with rubber boot and cap is one of the most common plugs used in marine applications. Hole diameter for mounting is half inch.
