Quintrex Genuine Parts

Exclusive to Quintrex, this is a fantastic product and allows you to launch and retrieve your boat on your own with ease. We put it on almost all of our stock boats now as standard as we know people will want it. It comes with both parts and can be retro fitted to most older boats and trailers. The gap between the two arms that hold the bow roller must be 100mm as per image attached. If your gap is 75mm then this unit will not work. Note: For packages below 2 Tonne all up, if you purchase the 2 piece winch platform and post below, which is what comes standard on a Quintrex/Stacer trailer, then the Catch will fit a lot easier as its all at the correct angles. Provided your trailer has this new style winch post then if you would like us to fit the catch it is just a $198 flat fee.

CLICK HERE to watch a great short video on the Catch and Release in operation.

Note: CLICK HERE for fitting instructions when you receive the unit. None are supplied in the box when shipped.

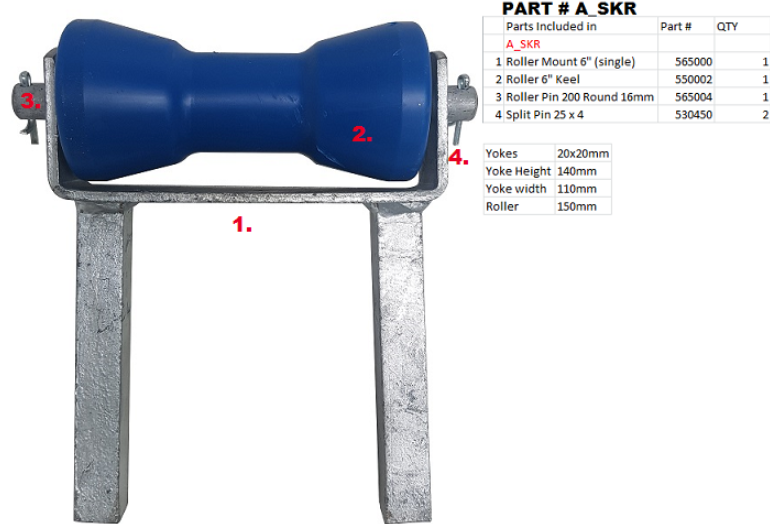

This is the genuine single keel roller assembly on most of the Quintrex and Stacer trailers. Dimensions are in the picture. The posts are 2cm square and the distance centre to centre of the posts is 130mm. Height of each post is 140mm.

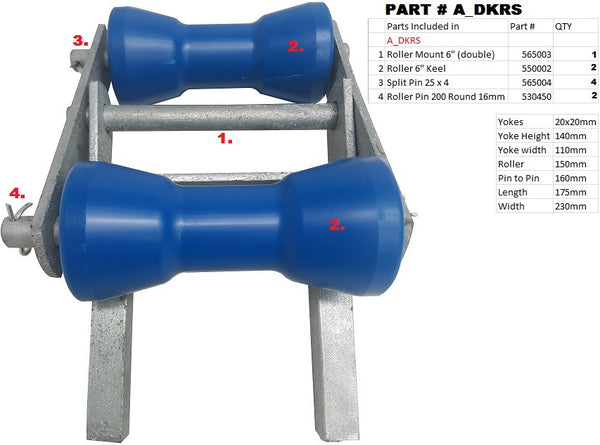

This is the genuine double keel roller assembly on most of the Quintrex and Staver trailers. Dimensions are in the picture. The posts are 2cm square and the distance centre to centre of the posts is 130mm. Height of each post is 140mm.

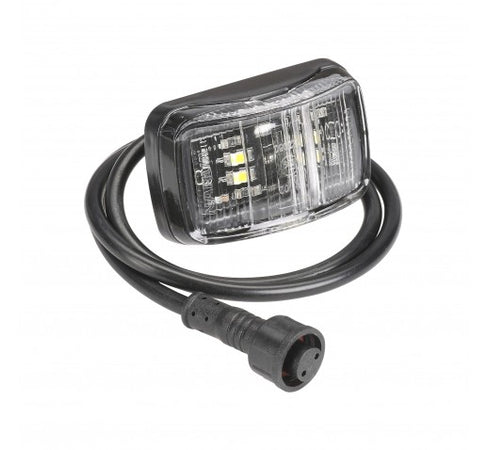

These are the trailer clearance lights that are used on the current range of Quintrex and Stacer Trailers but can be retro fitted to anything. They are LED and waterproof and can just be hard wired in to the existing trailer wiring or use the quick connect plug if you have that system. (If hard wiring just cut the plug off and make sure you seal the connection well with a bit of heat shrink). They are supplied as 1 only so if you need to do both sides make sure you order 2 or however many you need and the correct colour. Black plastic base dimensions are 55mm long by 35mm wide and the screw holes are 30mm apart.

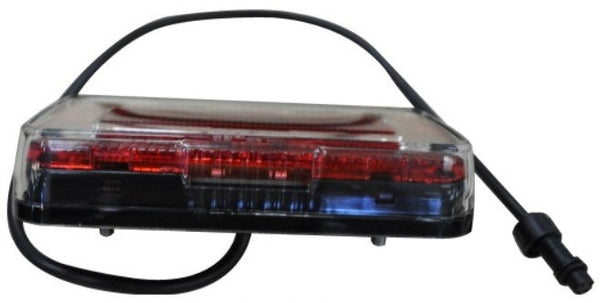

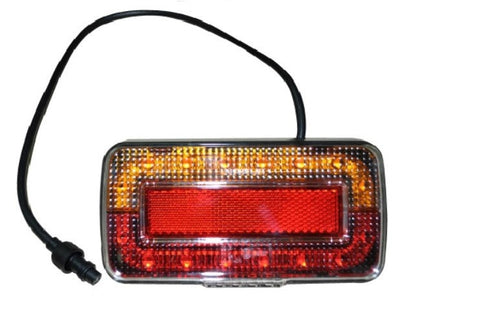

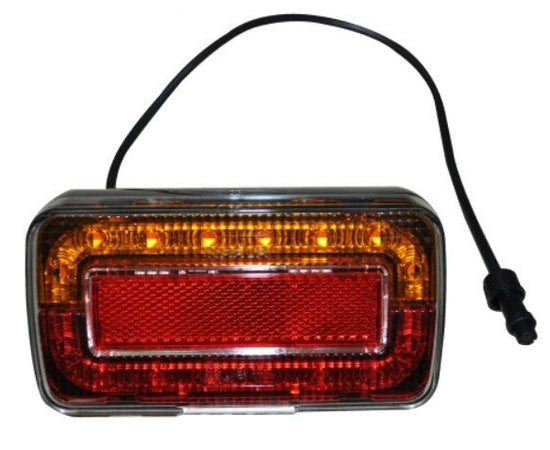

This are the rear trailer lights that are used on the current range of Quintrex and Stacer Trailers but can be retro fitted to anything. They are LED and waterproof and can just be hard wired in too the existing trailer wiring or use the quick connect plug (comes with 1mtr lead) if you have that system. (If hard wiring just cut the plug off and make sure you seal the connection well with a bit of heat shrink). They are supplied as 1 only so if you need to do both sides make sure you purchase the Starboard one below as well. Black plastic base dimensions are 150mm long by 80mm wide and the screw holes are 100mm apart.

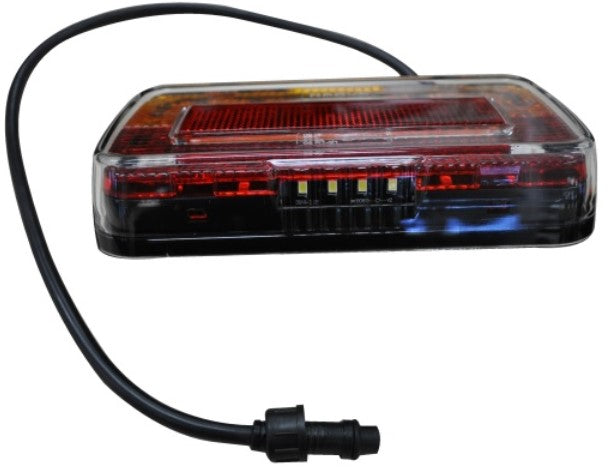

This are the rear trailer lights that are used on the current range of Quintrex and Stacer Trailers but can be retro fitted to anything. They are LED and waterproof and can just be hard wired in too the existing trailer wiring or use the quick connect plug (comes with 1mtr lead) if you have that system. (If hard wiring just cut the plug off and make sure you seal the connection well with a bit of heat shrink). They are supplied as 1 only so if you need to do both sides make sure you purchase the Port one above as well. Black plastic base dimensions are 150mm long by 80mm wide and the screw holes are 100mm apart. Note: This one has the clear numberplate light at the base.

This is a replacement 7 pin trailer plug with a prewired 1mtr lead that plugs in to the rest of the trailer wiring.

If you have a trailer with just the cotton reel roller at the rear and your sick of having trouble lining it up with the keel then this is a must. It comes as a pair and suits any trailer that has 50mm by 50mm (2 inch by 2 inch) cross member. It's super easy to fit but make sure you line up the end of the blue skid so it overhangs the keel roller by about 5mm to 10mm so the keel of your boat cannot go anywhere but to the centre of the roller. Note: You don't adjust the skids up to touch the bottom of the boat, they are there to slip the keel down onto the keel roller and are not designed to take any of the boat weight. Also when drilling the pivoting bolt through the skid make the inner length longer than the outer length (like in the picture) so the skids always flop towards and slightly on top of the keel roller. IF YOU DRILL EXACTLY IN THE MIDDLE THEN WHEN IMERSED IN THE WATER THE SKID CAN FLOP OUTWARDS.

This is the exact same product as the flipper kit above except it comes with a 2nd set of longer arms so that you can have it at a fixed angle. It comes as a pair and suits any trailer that has 50mm by 50mm (2 inch by 2 inch) cross members. It's super easy to fit but make sure you line up the end of the blue skid so it overhangs the keel roller by about 5mm to 10mm so the keel of your boat cannot go anywhere but to the centre of the roller. Note: You don't adjust the skids up to touch the bottom of the boat, they are there to slip the keel down onto the keel roller and are not designed to take any of the boat weight.

This heavy duty C section blue skid fits on the rear trailer guides. It is approx 500mm long and is riveted into place (rivets not supplied). The internal dimensions of the C section are approx 45mm wide and 15mm deep either side. It is supplied as one only so if you need to do both then make sure you order 2.
