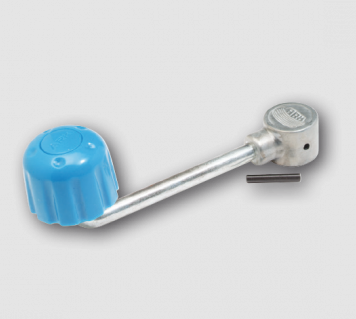

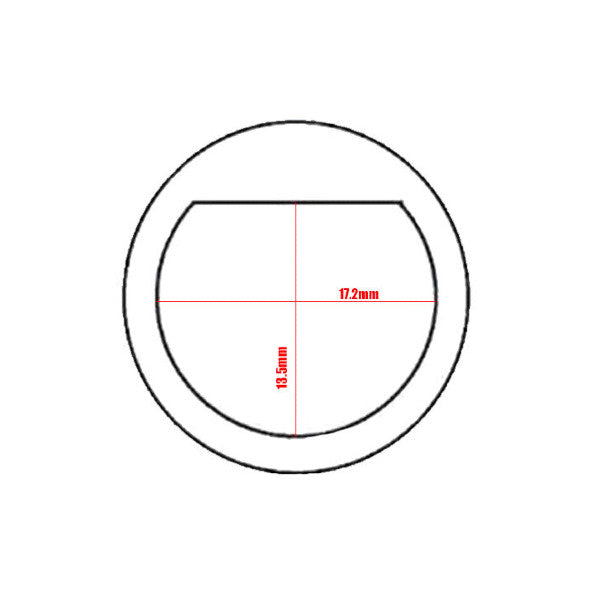

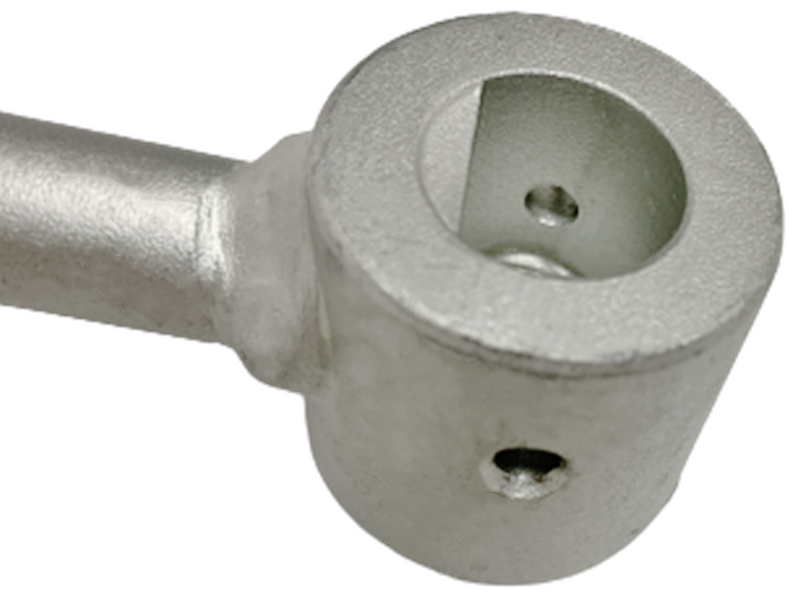

If you have broken your jockey wheel handle off and it looks like this you may be in luck. This is the most common handle and really the only one you can get. To replace it you punch the roll pin out and the old one should just lift straight off the threaded rod. Dimensions are in the following photos. Note: Its important you look at where the pin goes through the handle in the 2nd picture and compare it to yours. It DOES NOT go through the flat section. If yours goes through the flat section it is most probably the Meyer/Quintrex one below.
